NEW QUESTION # 83
To avoid power and grounding issues, any audio cable longer than 15 feet (4.6 meters) should use _______.
- A. A foil shield and drain wire
- B. Common-mode rejection ratios
- C. A balanced interface
- D. Common-mode rejection
Answer: C
NEW QUESTION # 84
How often should your toolbox multimeter be sent to an accredited testing laboratory for recalibration?
- A. Yearly.
- B. Before the commencement of each project.
- C. Never. It should be calibrated against your organization's highest-precision test instrument.
- D. Every five years.
Answer: C
NEW QUESTION # 85
Typically, what type of connector finishes the shielded twisted pair cable?
- A. XLR
- B. TRS
- C. RJ-45
- D. USB
Answer: A
NEW QUESTION # 86
If existing components have to be reused in an AV system, what is a critical task that the installer must perform?
- A. Test the equipment to make sure it is operational
- B. Draw a schematic showing where the old equipment fits
- C. Call the manufacturer to extend the warranty
- D. Discard items that do not meet specifications
Answer: A
NEW QUESTION # 87
Hot spotting increases as _____ increases.
- A. the projection cone
- B. ambient light
- C. surface area
- D. gain
Answer: D
NEW QUESTION # 88
What piece of test equipment is used to measure speaker resistance in a 70v distributed audio system?
Response:
- A. Ohm meter
- B. Volt meter
- C. Pink noise generator
- D. Impedance bridge/meter
Answer: D
NEW QUESTION # 89
_______ can transmit AV signals and other data up to a distance of 1km (3,280ft) or more before signal quality is compromised.
- A. Coaxial cabling
- B. Shielded twisted-pair (STP) cabling
- C. Unshielded twisted-pair (UTP) cabling
- D. Multimode fiber-optic cabling
Answer: D
NEW QUESTION # 90
Which of the following choices lists the correct pinouts for the T-568A end of a crossover network cable (pin
1-8):
- A. Gr, WGr, WOr, B, WB, Or, WBr, Br
- B. WOr, Or, WGr, B, WB, Gr, WBr, B
- C. Br, WBr, Or, WB, B, WOr, GR, WGr
- D. WGr, Gr, WOr, B, WB, Or, WBr, Br
Answer: D
NEW QUESTION # 91
The two Ethernet standards for an 8-pin modular connector (sometimes called an RJ45) termination are:
- A. E423A and E423B
- B. RJ45A and RJ45B
- C. RJ45B and RJ11A
- D. T568A and T568B
Answer: D
NEW QUESTION # 92
What is a best practice when selecting fasteners for mounting AV equipment?
- A. Use standards-rated bolts.
- B. Use bolts that are available near the job site.
- C. Use bolts with smooth heads.
- D. Use bolts that are extra-long.
Answer: A
NEW QUESTION # 93
Crossover cables are used to connect:
- A. a device's NIC to its MAC address
- B. devices configured to accept different Data Link layer protocols
- C. digital and analog devices
- D. two devices without the use of an electronic crossover device
Answer: D
NEW QUESTION # 94

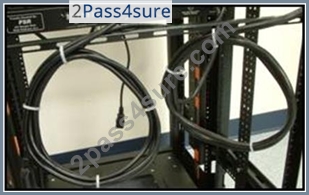

According to industry best practices, what is wrong with the picture above?
Response:
- A. The cable loop is too small
- B. Cable ties are too tight
- C. The cables are unsupported
- D. Poorly trimmed cable ties
Answer: C
NEW QUESTION # 95
Once an audio signal has left a microphone, what processor will it encounter first?
- A. The preamplifier
- B. The power amplifier
- C. Acoustic echo cancellation
- D. The audio mixer
Answer: A
NEW QUESTION # 96
Visual Acuity is __________.
- A. 20/20 vision
- B. the ability to perceive and assimilate visual information
- C. the visual angle of 1 minute of arc
- D. an optotype
Answer: B
NEW QUESTION # 97
The ANSI/AVIXA 2M-2010 Standard Guide for Audiovisual Systems Design Coordination Processes lays out a procedure for determining the:
- A. project communication that needs to take place on a given project
- B. functions and features that are required to support a given set of tasks
- C. verification tests that should be performed during a given project
- D. room types that are suitable for a given set of client needs
Answer: A
NEW QUESTION # 98
In which situations or environments is the system optimization method of gain adjustment preferable to the unity gain method? (Choose all that apply.)
- A. Where clipping levels will not vary within the system
- B. In performing arts centers and lecture halls
- C. For installations with short deadlines
- D. For systems with 750m V input signal levels
Answer: B
NEW QUESTION # 99
What does a microphone's polar pattern indicate?
- A. Performance in cold temperatures
- B. Sound sensitivity in different directions
- C. 6dB drop-off at 270 degrees
- D. Peak noise level
Answer: B
NEW QUESTION # 100
The second conductor of an unbalanced circuit _____.
- A. is a shield around the wire used as the electrical circuit's return path
- B. has the same impedance as the first signal conductor
- C. carries an inverse image of the first signal conductor
- D. is an insulated wire which transports the signal
Answer: A
NEW QUESTION # 101
DISCAS addresses the following viewing categories:
- A. Full Motion Video
- B. Analytical Decision Making
- C. Passive Viewing
- D. Basic Decision Making
Answer: B,D
NEW QUESTION # 102
Which is an RS232 parameter?
Response:
- A. Subnet mask
- B. Bandwidth
- C. Polarity
- D. Parity
Answer: D
NEW QUESTION # 103
Projector optics is defined as a _____.
- A. light source and a series of lamps that carry an image on a screen
- B. system of lamps and lenses that carry an image on a screen
- C. series of mirrors and lights that carry an image on a screen
- D. series of lenses that carry an image on a screen
Answer: B
NEW QUESTION # 104
What is a macro?
Response:
- A. A single function activated by a switch
- B. A function activated by a button
- C. Multiple functions activated by separate buttons
- D. A set or sequence of functions activated by a button
Answer: D
NEW QUESTION # 105
The back light _____.
- A. is the brightest light on the subject
- B. fills in dark spots which are created
- C. shines on the subject's shoulders and hair
- D. lights the background
Answer: C
NEW QUESTION # 106
......
